GENERAL INFORMATION:
The intermediate
proofer is manufacture for industrial plants, to ensure a continuous production
at high capacity. After the physical force applied during cutting and rounding
processes the dough arrives to the proving stage of recovery. During the
resting period inside the proofer the yeast continuous to convert the
food/fermentable sugars present in dough into the gas carbon dioxide. This
causes the dough to expand or rise as gas forms pockets or bubbles. This will
eventually present a dough piece that will take much better shape.
To
prevent dough pieces to fall on to the floor and to run a hygienic production
facility, sensors are at the entrance so the dough pieces are transferred into
empty bowl on time. Dough pieces are placed into baskets on automatic or manual
operation. The total amount of dough pieces entered into the proofer can be
observed on the digital display. Producing the proofer with double exit system
is possible as well as front entry and back exit or front entry and front exit.
Options:
1. Industrial single entrance,
2. Industrial double entrance,
3. Conveyor belt exit.
4. UV anti-germ blue light, and
5. Steam, heat and moisture compact system inside machine.

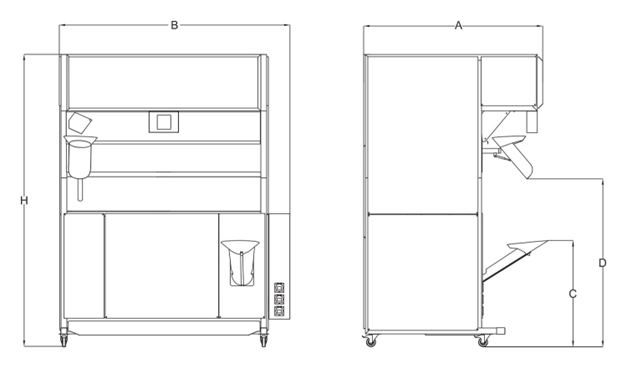

Technical Specifications |
|||||||
INTERMEDIATE PROOFER |
BIPM88 |
BIPM152 |
BIPM176 |
BIPM240 |
BIPM328 |
BIPM416 |
|
Pocket Quantity |
88 |
152 |
176 |
240 |
328 |
416 |
|
Machine Height |
H |
2500 |
2100 |
2500 |
2100 |
2500 |
2500 |
Machine Top |
A |
1075 |
1075 |
1075 |
1550 |
1550 |
2150 |
Machine Width |
B |
1225 |
1970 |
1970 |
1970 |
1970 |
1970 |
Entrance Height |
C |
800 / 950 |
800 / 950 |
800 / 950 |
800 / 950 |
800 / 950 |
800 / 950 |
Exit Height |
D |
1550 |
1250 |
1550 |
1250 |
1550 |
1250 |
Machine Weight |
kg |
400 |
450 |
550 |
500 |
700 |
850 |
Resting Time |
min/max |
2 - 4 |
3,6 - 7,2 |
4,2 - 8,4 |
6 - 12 |
7 - 15 |
8 - 17 |
